Er glass case (5) – 2*2*2.5mm

  • Product name: Er, Yb:glass
  • Product size: 2*2*2.5mm
  • Film system: S1 side: AR@940+HR@1535nm / S2 side: AR@1535nm

Customer Demand

Trade Name Specification/mm Remark
Er, Yb:glass 2*2*2.5mm

Coated sheet

Processing Index:

Concentration: greater than 1.19%

Dimension tolerance: Length and width (0/-0.1) mm

Thickness tolerance: ±0.1mm

Finish: 10/5, surface type: λ/10

Parallelism: 20″

Coating (2*2mm double-sided coating)

S1 side: AR@940+HR@1535nm

Side S2: AR@1535nm

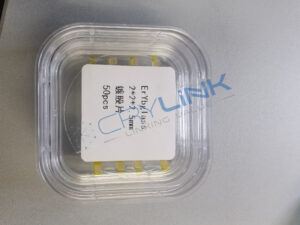

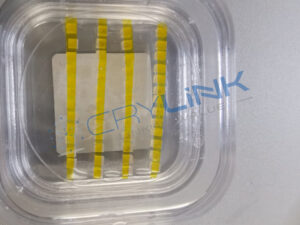

Picture of Shipment

er-glass er-glass

If you are intereted in Er glass case (5) – 2*2*2.5mm, please click the button below to enquire or ask for a samplel.

Inquiry/Sample
