Nd: YVO4 crystal case (1) – 4*4*30mm

  • Product name: Nd:YVO4
  • Product size: 4x4x30mm
  • Film system: /

Customer Demand

Trade Name Specification/mm Remark
Nd: YVO4 4x4x30mm Concentration: 0.5%

Direction: a-cut

4*4mm double-sided AR@1064+888nm

Processing index:

Orientation Tolerance: < 0.5°

Thickness/Diameter Tolerance: ±0.10 mm

Surface Flatness: <(λ/2-λ/4)@632nm

Wavefront Distortion: <(1-2)λ@632nm

Surface Quality: 60/40

Parallel: 1ˊ

Perpendicular: 30ˊ

Clear Aperture: >90%

Chamfer: <0.2×45°

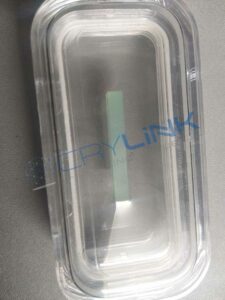

Picture of Shipment

nd yvo4 nd yvo4

If you are intereted in Nd: YVO4 crystal case (1) – 4*4*30mm, please click the button below to enquire or ask for a samplel.
